Interior vs Exterior Foundation Waterproofing: Which Do You Need?

You’ve got a leaking basement, and the first quote you got says the only answer is to dig down around the outside of the house, expose the foundation and put on a new membrane. It sounds big, because it is. Before you sign, it’s worth knowing there’s another way to approach many foundation leaks.

This post compares interior vs exterior foundation waterproofing in plain language: how each one works, when each makes sense, what each won’t fix, and the questions to ask any contractor. Interior repair is our main method, so we’ll be upfront about where exterior work may be the better choice. If you’d like us to look at your wall, our foundation leak repair page explains how we work.

Two ways to waterproof a foundation

Every foundation wall has two faces, and waterproofing can go on either one.

• The positive side is the side the water comes from. For a basement wall, that’s the outside face, against the soil.
• The negative side is the opposite face, the inside of the basement, where you see the water arrive.

Exterior waterproofing works on the positive side. It keeps water from reaching the concrete in the first place. Interior waterproofing, also called negative-side waterproofing, works from inside. It stops water that’s already pushing through the wall and makes the concrete itself resist it.

Both are legitimate. Which one fits depends on where the water is getting in, how much of the wall is affected and what’s around your house.

Exterior waterproofing: when it makes sense

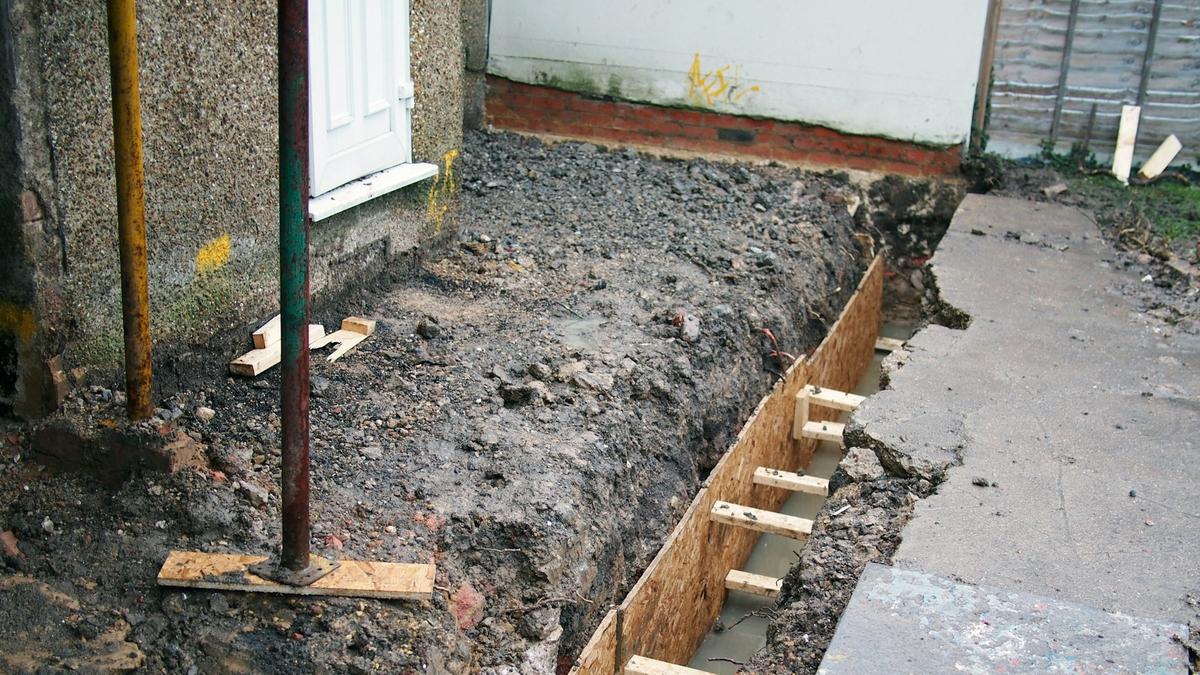

Exterior foundation waterproofing usually means excavating a trench down to the footing along the affected walls. The old damp-proofing is cleaned off, cracks are repaired from outside, and an exterior foundation membrane or coating is applied. Often the drainage at the footing (perimeter drain tile) is inspected or replaced at the same time, and the trench is backfilled.

It makes the most sense when:

• The house is new or under construction, and the outside of the foundation is still exposed. This is the right time to waterproof from the outside.
• The outside is already open for another reason, such as replacing a failed perimeter drain, a sewer line or an addition.
• The whole wall is saturated and the drainage around it has failed, so the problem is bigger than individual cracks.

The trade-off is disruption. Excavation means digging up whatever is next to the wall: gardens, lawns, walkways, patios, decks, stairs, sometimes part of a driveway. On tight city lots, the trench can run right along the property line, so neighbours and access come into it. Then everything has to be put back. Weather matters too, and an open trench in our rainy season is its own problem.

Exterior work is an option a contractor may recommend in these situations. If you’re weighing it, ask us whether it suits your house.

Interior (negative-side) waterproofing

Interior waterproofing deals with the water where it comes through: the crack, the joint, the tie hole, the pipe penetration. This is our method.

Here’s how it works against water pressure. When groundwater rises after heavy rain, it pushes on the outside of the wall. A paint or film applied on the inside would just get pushed off.

Crystalline waterproofing is different. It reacts with moisture and the cement in the concrete to grow crystals inside the pores and fine cracks, so the concrete itself becomes the barrier. Kryton describes its Krystol T1 treatment as usable on either the positive or negative side of the water pressure. For the details, see how crystalline waterproofing works.

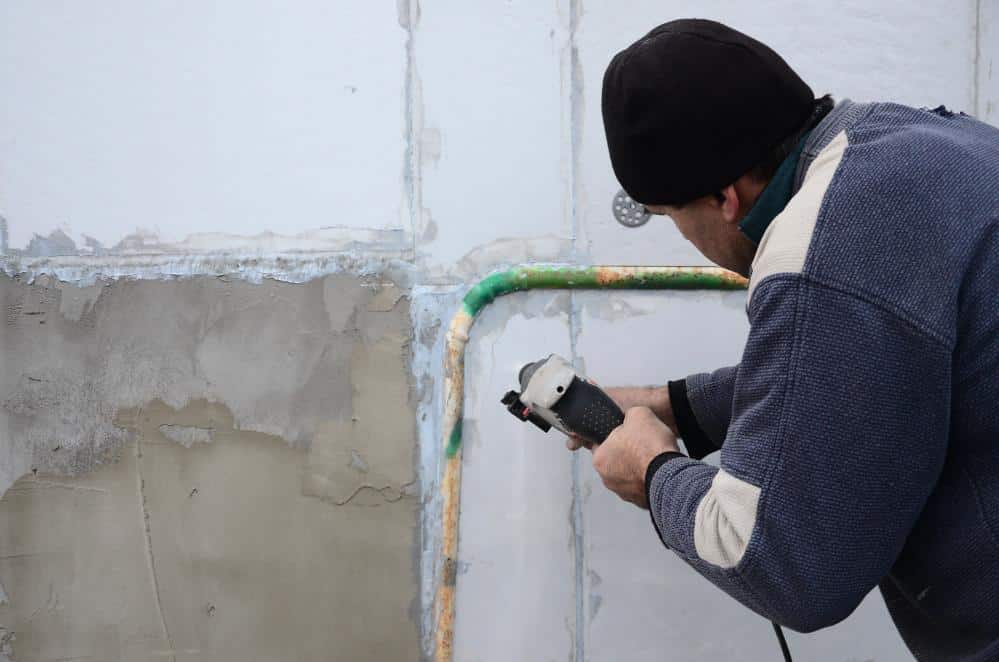

A typical interior repair looks like this:

1. We find every active leak path on the wall, not just the wettest spot.
2. Leaking cracks and joints are cut out into a clean channel. If water is running, we stop it with Krystol Plug, a rapid-setting hydraulic cement. We’d actually rather see it running, because that shows us exactly where it comes in.
3. The channel is packed with crystalline repair material, and crystalline treatment is applied to the concrete.
4. Where a crack’s width or movement calls for it, we use compatible injection.

The big advantage is disruption, or the lack of it. The work happens inside the basement. Nothing outside gets dug up. The process is clean, with no odours, and we keep noise and dust down while we work. See our crack repair and waterproofing page for the kinds of defects we treat.

Interior vs exterior foundation waterproofing, side by side

	Interior (negative-side)	Exterior (positive-side)
Disruption	Low. Work happens inside the basement; nothing outside is dug up.	High. Trench along the wall; landscaping, walkways, decks or driveway may need removing and restoring.
Access needed	Clear access to the inside face of the wall (finishes may need opening up at the leak).	Room to excavate outside down to the footing, plus space for equipment and soil.
What it fixes	Leaking cracks, cold joints, tie holes, honeycomb and pipe penetrations, treated where water comes through.	Water reaching the outside of the wall across a whole section; can be combined with new perimeter drainage.
What it doesn’t fix	Failed drainage, poor grading, overflowing gutters or flooded window wells. Moving or structural cracks need an engineer first.	Water coming from inside sources (plumbing, condensation). Structural issues still need an engineer.
Typical situations	Existing homes and buildings with specific leaking cracks or joints; finished landscaping or tight lots; elevator pits and parkades where the outside can’t be reached.	New construction, open excavations, or a whole wall that’s saturated because the exterior drainage has failed.

How to choose (questions to ask any contractor)

Whoever you talk to, these questions will help you compare quotes fairly.

Where is the water actually getting in? A good contractor should be able to show you. Is it one crack, a cold joint at the floor, a tie hole, a pipe? If they can’t point to it, ask why.

Is it one crack or the whole wall? A few specific leak points usually suit an interior repair. A whole wall that weeps everywhere after rain may point to a failed exterior system.

Is drainage or grading part of the problem? Look at where your downspouts empty, which way the ground slopes next to the house and whether window wells drain. No waterproofing method fixes water that’s being poured against the house.

Is any crack structural? Wide, offset, growing or horizontal cracks, or bowing walls, need a structural engineer first.

What exactly is included? Ask what happens to landscaping, finishes and cleanup, and what the plan is if water appears somewhere new.

If you’re still working out why the wall leaks at all, start with why foundation walls leak after heavy rain.

Common questions

Is interior waterproofing as good as exterior?

They do different jobs. Exterior waterproofing keeps water off the wall; interior crystalline repair stops water where it comes through and makes the concrete itself resist it. For specific leaking cracks, joints and tie holes in an existing home, an interior repair is often the practical choice. For a wall with failed drainage across its whole length, exterior work may be the better fix.

Can you waterproof a basement without digging?

Often, yes. Leaking cracks, joints, tie holes and pipe penetrations can be repaired from inside using crystalline materials that work against water pressure from outside. That means no trench, no lost landscaping and no restoring the yard afterwards. Whether it suits your basement depends on what’s causing the leak, so we inspect first and tell you honestly.

What is negative-side waterproofing?

It’s waterproofing applied to the inside face of a wall, the side opposite the water. The water is still pushing from the soil side, so the material has to resist that pressure rather than just sit on the surface. Crystalline products do this by growing crystals inside the concrete. It’s how we repair basements, elevator pits and parkades where the outside can’t be reached.

Does interior waterproofing work on older Burnaby or Vancouver homes?

Usually, yes, as long as the walls are poured concrete. Older homes across Burnaby and Vancouver often have worn-out exterior damp-proofing, tie holes and settlement cracks, which are exactly what interior crack and joint repair targets. Very old or deteriorated walls, block walls or walls with structural cracks need a closer look first, so we’ll assess the wall before recommending anything.

Do I still need to fix gutters or grading?

Yes, if they’re part of the problem. Overflowing gutters, downspouts that empty against the wall, ground that slopes toward the house and blocked window-well drains all put more water against your foundation. Fixing those is cheap and worthwhile alongside any waterproofing. We’ll point out anything we notice during the inspection.

Get a second opinion before you dig

If you’ve been told you need to excavate, it costs nothing to find out whether an interior repair would do the job. We repair foundations across Burnaby, Vancouver, Richmond, Surrey and the Fraser Valley. Read more about our foundation leak repair, then call (778) 686-2221 (Mon–Sat, 8:30 AM–5:00 PM) or book a free inspection.
